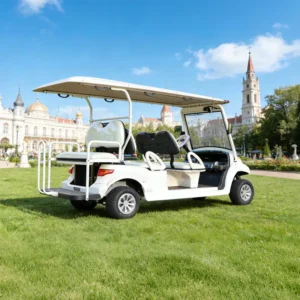

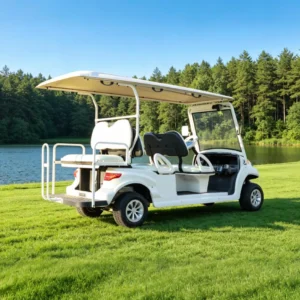

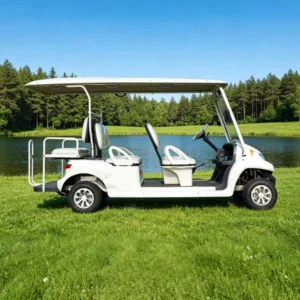

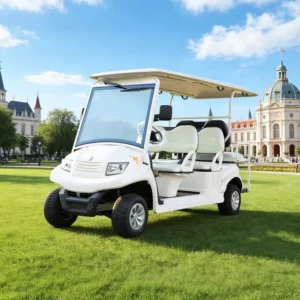

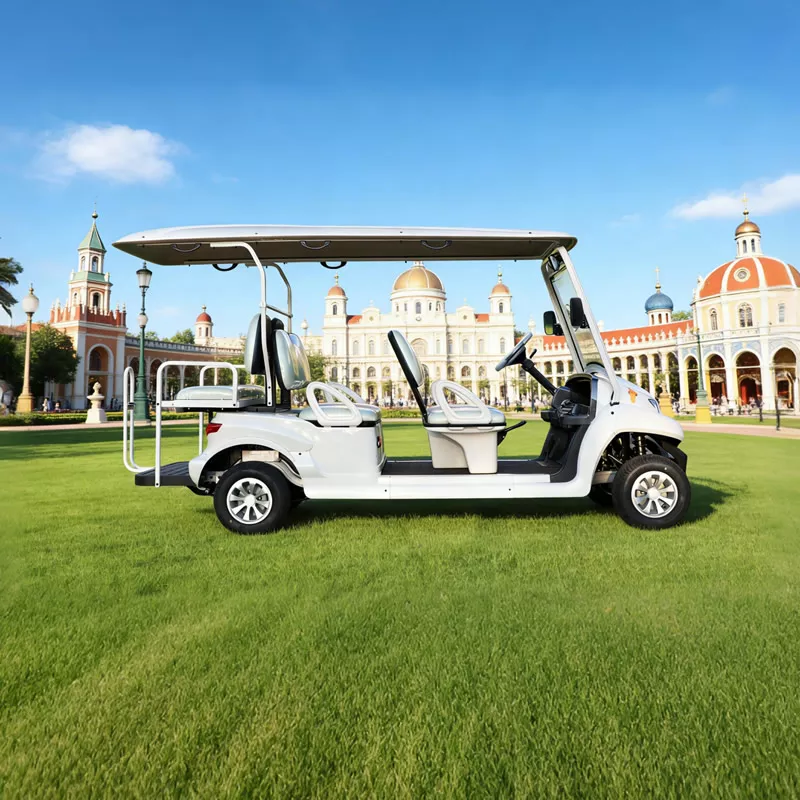

6-Seat Osprey
The Electric Osprey 6 seat people transporter has a passenger capacity of 5 passengers + driver.
4 forward facing seating capacity and 2 rear facing seating capacity which can be quickly and easily converted into a luggage carrying system makes the Electric Osprey a versatile people transporter and is ideal for use in large hotel complexes or holiday parks where there is a requirement to transport customers and luggage to their vacation rooms.
Using Trojan deep cycle lead acid batteries or a optional Lithium battery pack and powered by a 5kw electric motor gives the Electric Osprey 6 seat people transporter a range of up to 90km in between charges.
Mileage: 55-90 miles
Engine: 3, 3.8 KW, 5KW DC/AC
Fuel Type: Electric
Transmission: Automatic
Exterior Colour: Red/Champagne/Metallic Green/Navy Blue/Pure Black/Pure White
Interior Colour: Tan/White
Specification
| Battery | Deep cycle, lead acid battery, Trojan brand, imported |
| Motor Power | 3, 3.8KW DC / AC |
| Controller | Curtis brand, Separately excited, imported |
| Passenger capacity | 4 |
| Range (loaded) based on flat road at a speed of 20km/h (km) | >55–90 depends on battery setup |
| Max. speed | 21-40 depends on motor and rear axle setup |
| Minimum turning radius (m) | 4.5 |
| Max. climbing ability | 20% |
| Max. loading weight | 300kgs |
| Overall dimensions (mm) | 3110X1180X1890 |
| Body and Frame | |
| Frame | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front body + PP plastic rear body |
| Roof | injected plastic |
| Windshield | one-piece Organic glass |
| Large Seats: | Rebond seat + artificial leather, formed armrest, plastic seat bottom |
| Floor | rubber |
| Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key |
| Beverage holders | 4 cups drink holders |
| Electric system | |
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. Reversing alarm |
| Charger | input 110V-240V~50Hz-60Hz, output 36V/48V, 20A/25A |
| Steering and Suspension | |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | Mechanical brake |
| Accelerator | Stepless speed change |
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated |
| Wheel & Tyre | 10×6 Alumimum wheel & 205/50-10 4PR |
