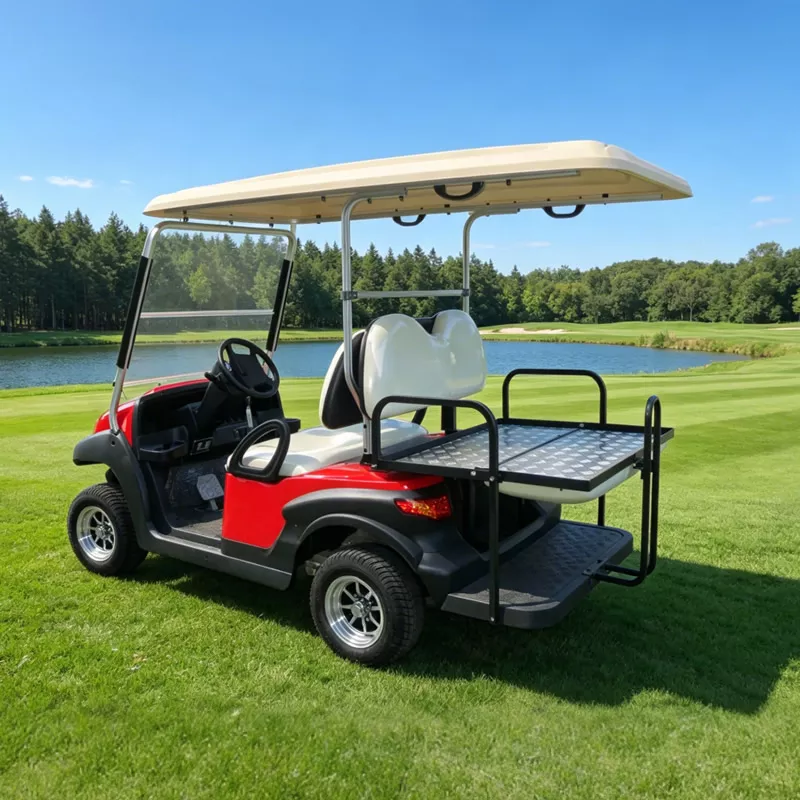

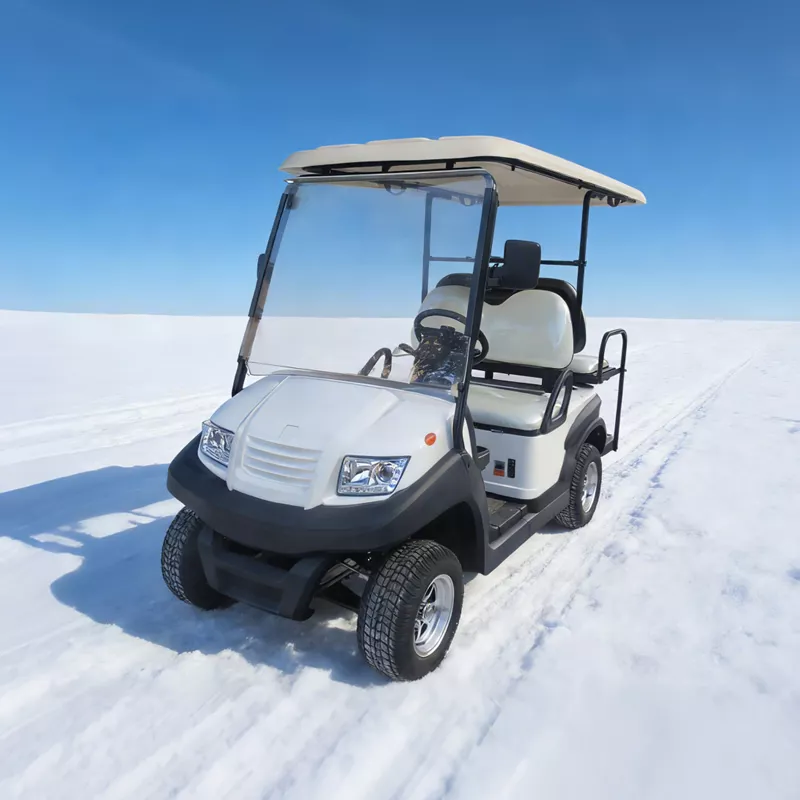

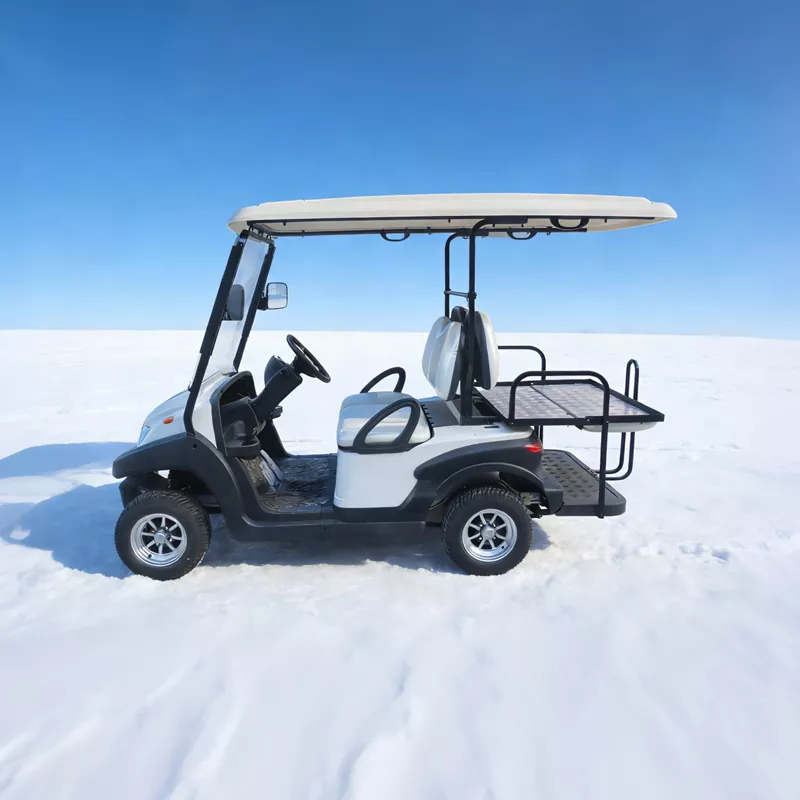

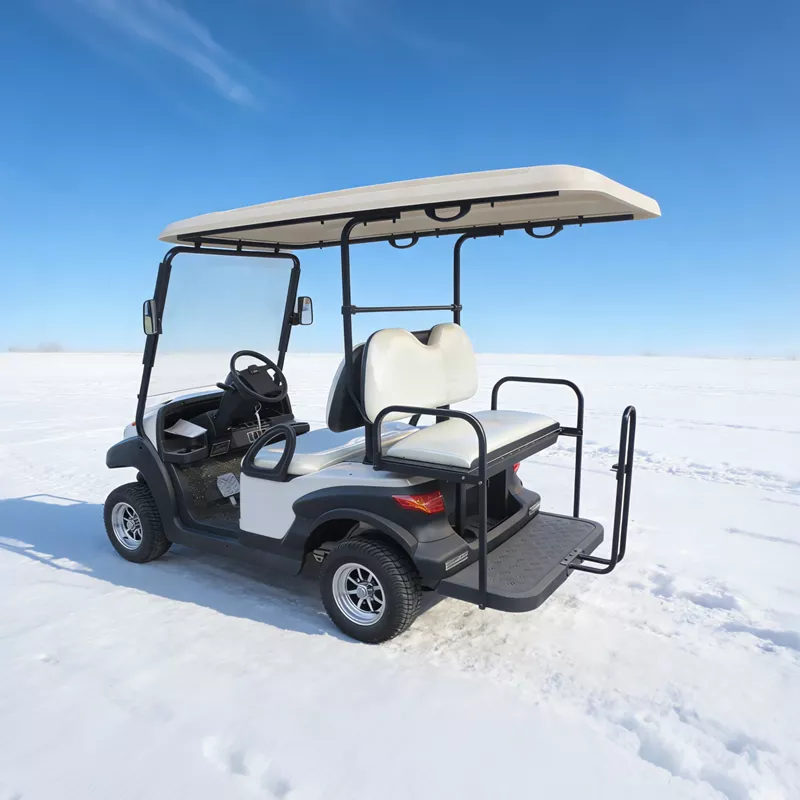

4-Seat Kestrel
The Electric Kestrel 4 Seat Vehicle people transporter is ideal for transporting parties of 2 or 3 customers around their venues.
Choice of 3kw, 3.8kw, or 5kw dc/ac electric motor power allows the operators the ability to match their venues terrain to the power requirement.
2 rear facing seats with lap seat belts, aluminium chassie and fully independent suspension gives the passengers a safe and comfortable ride, however unlike most of the Electric Vehicle range the Kestrel cannot be registered for full road use.
Mileage: 60-100 miles
Engine: 3KW, 3.8KW,5KW DC / AC
Fuel Type: Electric
Transmission: Automatic
Exterior Colour: Red Multi-Coat
Interior Colour: Jet Red
Specification
| Battery | Deep cycle, lead acid battery, Trojan brand, imported |
| Motor Power | 3KW, 3.8KW,5KW DC / AC |
| Controller | Curtis brand, Separately excited, imported |
| Passenger capacity | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km) | >60–100 depends on battery setup |
| Max. speed | 21-40 depends on motor and rear axle setup |
| Minimum turning radius (m) | 3 |
| Max. climbing ability | 20% |
| Max. loading weight | 370kgs |
| Overall dimensions (mm) | 2920X1180X2050 |
| Body and Frame | |
| Frame | Aluminum Alloy Beam |
| Body | PP plastic front body + PP plastic rear body |
| Roof | injected plastic |
| Windshield | one-piece Organic glass |
| Large Seats: | Rebond seat + artificial leather, formed armrest, plastic seat bottom |
| Floor | rubber |
| Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key |
| Beverage holders | 4 cups drink holders |
| Electric system | |
| Lighting system and horn | 2 headlights (with H/L beam), 2 front turn signals, Front LED position light, 2 LED taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V/36V to 12V), horn. |
| Charger | input 110V-240V~50Hz-60Hz, output 36V/48V, 20A/25A |
| Steering and Suspension | |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | Mechanical brake |
| Accelerator | Stepless speed change |
| Suspension system | Front Independent Suspension and rear taper leaf spring + cylinder hydraulic shock absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated |
| Wheel & Tyre | 10×6 Alumimum wheel & 205/50-10 4PR |
